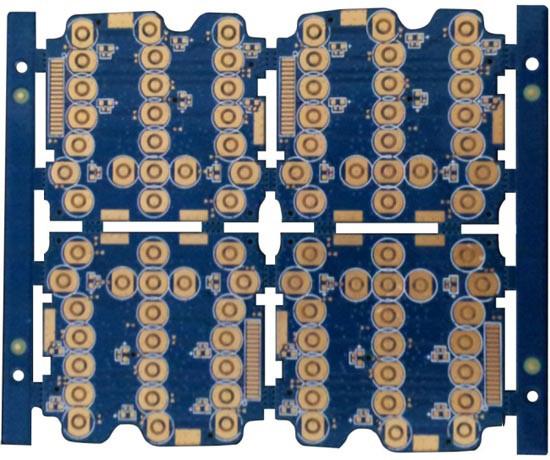

32 Layer FR-4 Shengyi S1000-2m HDI Arbitrary Interconnection Circuit Board
1, Craftsmanship
Use high-quality plates,smooth cutting. stable color,good brightness and Smooth coating
2, Anti-oxidation, high temperature resistance, waterproof
Anti-oxidation surface finish to ensure heat-shock resistance, moisture protec-tion to protect the surface from rusting and oxidation.
3, Advantages of PCB Boards:
Extremely effective treatment of thermal diffusion in the circuit design scheme, thereby reducing module operating temperature,extending service life, and improving power density and reliability.
Rigid PCB Manufacturing Capability
| Rigid PCB Manufacturing Capability |
| Item | PCB | HDI |
| Layer | 1-40 | 1-40 |
| Minimum linewidth/linespacing | 3MIL/3MIL(0.075mm) | 2MIL/2MIL(0.05MM) |
| Minimum hole diameter | 6MIL(0.15MM) | 6MIL(0.15MM) |
| Minimum solder resist opening (single-side) | 1.5MIL(0.0375MM) | 1.2MIL(0.03MM) |
| Minimum solder resist bridge | 3MIL(0.075MM) | 2.2MIL(0.055MM) |
| Maximum aspect Ratio (thickness/hole diameter) | 10:01 | 8:01 |
| Impedance control accuracy | +/-8% | +/-8% |
| Finished thickness | 0.3-3.2MM | 0.2-3.2MM |
| Maximum board size | 630MM*620MM | 620MM*544MM |
| Maximum finished copper thickness | 6OZ(210UM) | 2OZ(70UM) |
| Minimum board thickness | 6MIL(0.15MM) | 3MIL(0.076MM) |
| Maximum layer | 14层 | 12层 |
| Surface treatment | HASL-LF,OSP ,Immersion Gold, Immersion Tin ,Immersion Ag | Immersion Gold,OSP,selectiveimmersion gold, |
| carbon print |
| Min/max laser hole size | / | 3MIL / 9.8MIL |
| Laser hole size tolerance | / | 10% |
| Packaging & Delivery |
| Packaging Details: | Inner: vacuum packing or Anti-static package,
Outer: export carton
or according to the customer's requirement. |
| Port: | Shenzhen or Hongkong |
| Lead Time: | Quantity(Pieces) | 1-10 | 11-100 | 101-1000 | >1000 |
| | Est. Time(days) | 20 | 21 | 25 | To be negotiated |
FAQ:
Q: What service do you have?
FASTPCB: We provide turnkey solution including PCB fabrication, SMT, plastic injection & metal,final assembly, testing and other value-added service.
Q: What is needed for PCB & PCBA quotation?
FASTPCB: For PCB: Quantity, Gerber file and technic requirements(material,size, surface finish treatment, copper thickness,board thickness).
For PCB: PCB information, BOM,Testing documents.
Q: How to keep our product information and design file secret ?
FASTPCB: We are willing to sign a NDA effect by customers side local law and promising tokeep customers data in high confidential level.
Q: Are you factory?
FASTPCB:Shangxing West Industrial Zone, Xihuan Road, Shajing Street, Bao 'an District, Shenzhen, Guangdong province, China
